K072862

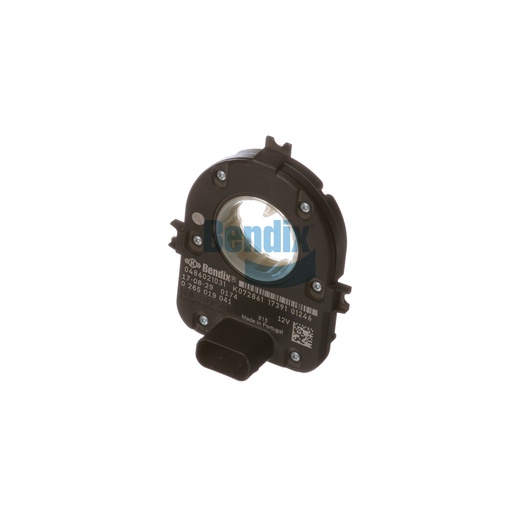

Steering Angle Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Steering Angle Sensor is a pivotal part of advanced stability systems in commercial vehicles, designed to enhance driving safety and performance. This sensor delivers precise measurements of the steering angle, allowing for better vehicle control and responsiveness. With a compact design and a weight of just 0.1 kg (0.14 lb), it is easy to install and integrates seamlessly with existing systems. The sensor is built to withstand harsh conditions, ensuring reliability and accuracy in various driving environments. Choose Source One Parts Center for your genuine Bendix parts, where we prioritize quality and customer satisfaction.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-002-029: Sensor - Steering Wheel Angle
Current (Maximum)
150 mA
Overvoltage
18 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
32.6 mm (1.28 in)
CAN Baud Rate
500 Kilobaud
Width
72.0 mm (2.83 in)
Operating Voltage Range
8 VDC - 16 VDC
Height
85.0 mm (3.35 in)
Harmonized System (HS) Code
854370
Connector Orientation
90°
Connector Type
Bosch 7-Pin Connector (Male)
Cautionary Note(s)
Fastener Torque & Orientation are Critical
Country of Origin
Germany
Ingress Protection Rating
IP50
Steering Column Shaft Diameter
Ø 24.90 mm
Weight
0.14 lb
