$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

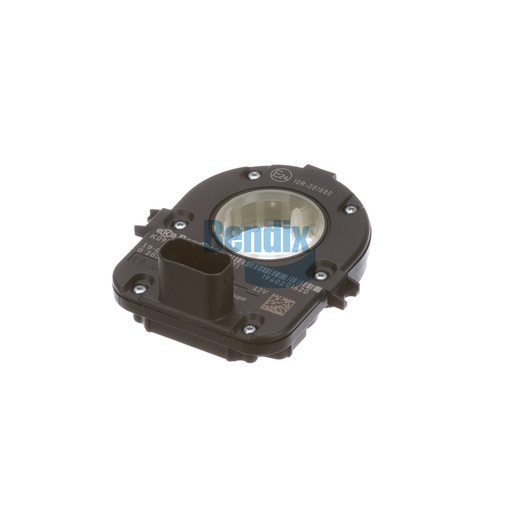

The Bendix Steering Angle Sensor is a crucial component that enhances vehicle stability and safety by accurately measuring the angle of the steering wheel. This advanced sensor features a robust design that can withstand harsh conditions, ensuring reliable performance in various driving environments. With a maximum operating temperature of 185 °F and an operating voltage range of 8 to 16 VDC, this sensor is engineered for durability and efficiency. Its CAN communication capability allows for seamless integration with other vehicle systems, providing real-time data for optimal handling and control. Ideal for vehicles equipped with advanced driver assistance systems, this sensor plays a key role in improving overall vehicle dynamics. For the best range of genuine Bendix OEM parts, Source One Parts Center is your go-to source, ensuring that you receive quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-002-029: Sensor - Steering Wheel Angle
Current (Maximum)
150 mA
Maximum Operating Temperature
185 °F (85 °C)
Overvoltage
24 Volts
CAN Baud Rate
250 Kilobaud
Length
32.6 mm (1.28 in)
Width
72.0 mm (2.83 in)
Operating Voltage Range
8 VDC - 16 VDC
Height
85.1 mm (3.35 in)
Harmonized System (HS) Code
854370
Connector Orientation
90°
Connector Type
Bosch 7-Pin Connector (Male)
Cautionary Note(s)
Fastener Torque & Orientation are Critical
Ingress Protection Rating
IP50
Country of Origin
Portugal
Steering Column Shaft Diameter
Ø 24.90 mm
Weight
0.15 lb
