$1,199.95
$1,439.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

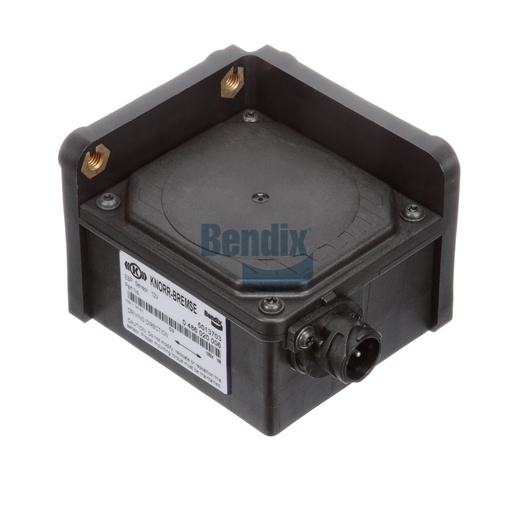

The Bendix Yaw Rate Sensor is an advanced component designed to enhance your vehicle's stability and control. This sensor plays a critical role in monitoring the rotational movement of the vehicle, providing real-time data that helps in the effective functioning of electronic stability control systems. With a robust design and an ingress protection rating of IPX9K, this sensor is built to endure harsh environmental conditions, ensuring reliable performance in any situation. Its precise measurements help prevent skidding and improve overall vehicle handling, which is crucial for commercial trucks operating under varying conditions. When it comes to sourcing genuine Bendix OEM parts, trust Source One Parts Center for quality components that uphold the highest standards in safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-012-001: Sensor - Yaw Rate, Electronic Stability Control
Length
107.5 mm (4.23 in)
Width
138.2 mm (5.44 in)
Current (Maximum)
170 mA
Maximum Operating Temperature
185 °F (85 °C)
Operating Voltage Range
8.2 VDC - 16 VDC
Height
88.0 mm (3.46 in)
Harmonized System (HS) Code
903180
Connector Type
DIN 72585 4-Way Bayonet Plug Connector (Twist-Lock)
Cautionary Note(s)
Fastener Torque & Vent Orientation are Critical
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Mounting
M8 x 1.25-6H (3x)
Weight
0.09 lb
