K058836

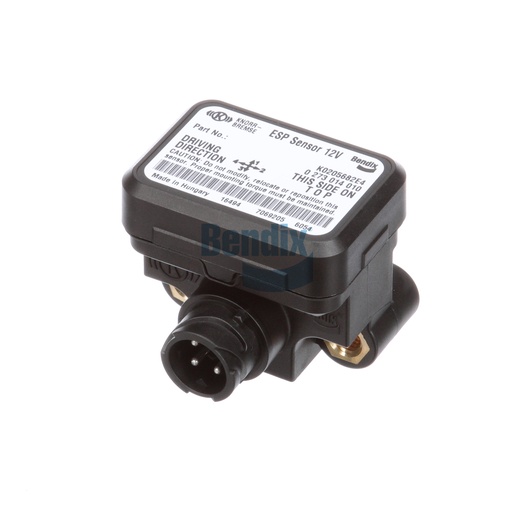

Yaw Rate Sensor
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Yaw Rate Sensor is an advanced component designed to enhance the stability and control of your commercial vehicle. This sensor measures the vehicle's rotational movement, providing critical data that assists in electronic stability control systems, helping to prevent skidding and loss of control. With an IPX6K and IPX9K ingress protection rating, this sensor is built to withstand harsh conditions, ensuring reliable performance in various environments. Its compact design and lightweight construction allow for easy installation and integration into your vehicle's systems. When it comes to genuine Bendix OEM parts, Source One Parts Center is your premier source, offering high-quality components that enhance your vehicle's safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-012-001: Sensor - Yaw Rate, Electronic Stability Control
Current (Maximum)
130 mA
Maximum Operating Temperature
185 °F (85 °C)
CAN Baud Rate
250 Kilobaud
Height
61.4 mm (2.42 in)
Length
65.9 mm (2.59 in)
Operating Voltage Range
7 VDC - 18 VDC
Width
70.1 mm (2.76 in)
Harmonized System (HS) Code
903180
Connector Type
DIN 72585 4-Way Bayonet Plug Connector (Twist-Lock)
Cautionary Note(s)
Fastener Torque & Vent Orientation are Critical
Country of Origin
Hungary
Ingress Protection Rating
IPX6K / IPX9K
Mounting
M10 x 1.5-6H (2x)
Weight
0.6 lb
