801807

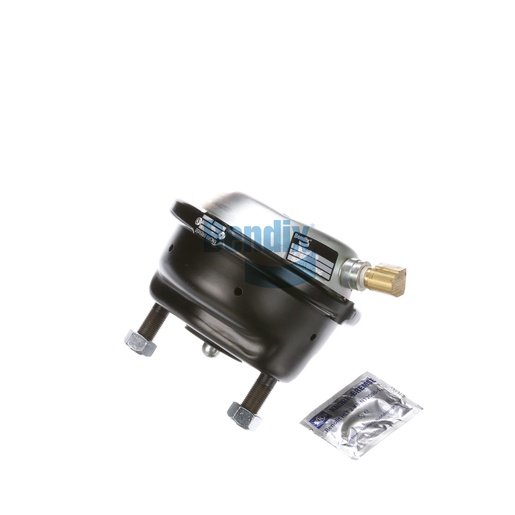

Brake Chamber (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Brake Chamber (Disc) from Bendix is designed specifically for air disc brake systems, providing reliable and efficient braking performance. It converts air pressure into mechanical force, ensuring that your brakes engage effectively, which is essential for maintaining safety in heavy-duty applications. The durable construction of this brake chamber allows it to perform well under extreme conditions, reducing the risk of failure and enhancing vehicle reliability. Its straightforward installation process minimizes downtime during repairs, making it a practical choice for fleet managers looking to keep their vehicles on the road. When searching for top-quality Bendix OEM parts, Source One Parts Center is the best option, dedicated to delivering reliable components for optimal vehicle performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-060: Chamber Assembly - Service Brake, Air Disc Brake
Clamp Angle
0°
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.50 IN (63.5 MM)
Service Port (11) - Side
3/8-18 NPT x 3/8-18 NPT (90° Street Elbow)
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Service Chamber Vent Holes
90°
Port Angle
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
Czech Republic
Stud Thread Size
M16 x 1.5-6g
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T20
Weight
7.98 lb
