801808

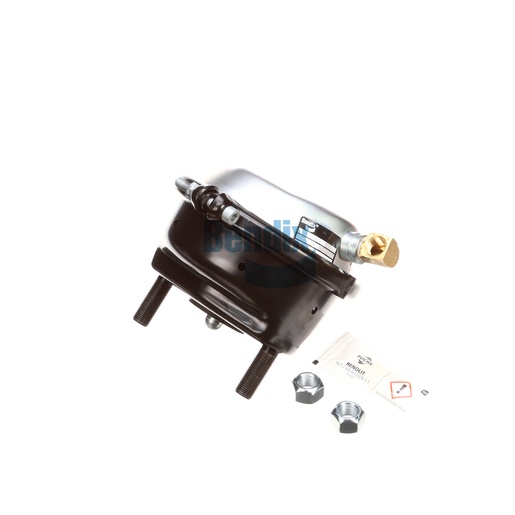

Brake Chamber (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix brake chamber for disc brakes is engineered to provide exceptional stopping power and reliability in commercial applications. Featuring a stroke length of 2.50 inches and a robust construction, this chamber ensures efficient operation under various load conditions. With its single clamp band service chamber joint type, installation and maintenance are made easy, promoting reliability and safety in your braking system. This brake chamber is designed to withstand both high and low temperature extremes, ensuring optimal performance no matter the conditions. For those seeking quality and durability in their braking components, Source One Parts Center is your trusted source for genuine Bendix OEM parts that keep your vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-060: Chamber Assembly - Service Brake, Air Disc Brake
Clamp Angle
0°
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.50 IN (63.5 MM)
Service Chamber Vent Holes
270°
Service Port (11) - Side
3/8-18 NPT x 3/8-18 NPT (90° Street Elbow)
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Port Angle
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
Czech Republic
Stud Thread Size
M16 x 1.5-6g
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T20
Weight
7.96 lb
