$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

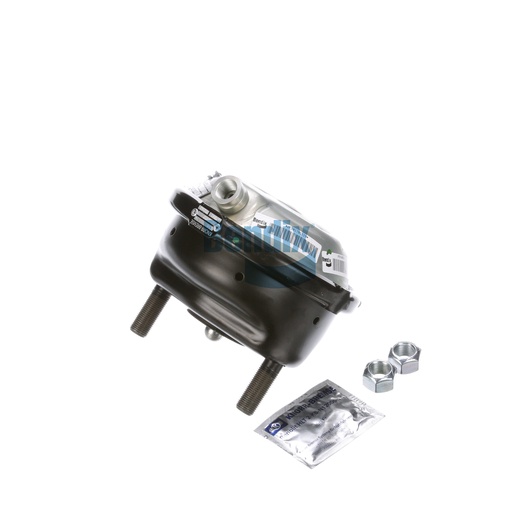

The Brake Chamber (Disc) is a crucial component in your truck's braking system, designed to effectively convert air pressure into mechanical force for optimal braking performance. This chamber is built to deliver consistent and reliable operation, ensuring that your vehicle can stop safely and efficiently under various driving conditions. With its robust construction, the Brake Chamber is engineered to withstand the demands of heavy-duty applications, providing long-lasting performance. Regular maintenance and timely replacement of the Brake Chamber are essential for maintaining the overall safety and effectiveness of your braking system. By investing in this reliable component, you enhance your vehicle's performance and ensure a safer driving experience. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering high-quality components that meet your vehicle’s specific needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-060: Chamber Assembly - Service Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.25 IN (57.2 MM)
Service Chamber Vent Holes
270°
Service Port (11) - Side
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Clamp Angle
90°
Port Angle
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
Czech Republic
Stud Thread Size
M16 x 1.5-6g
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T14
Weight
3.28 lb
