$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

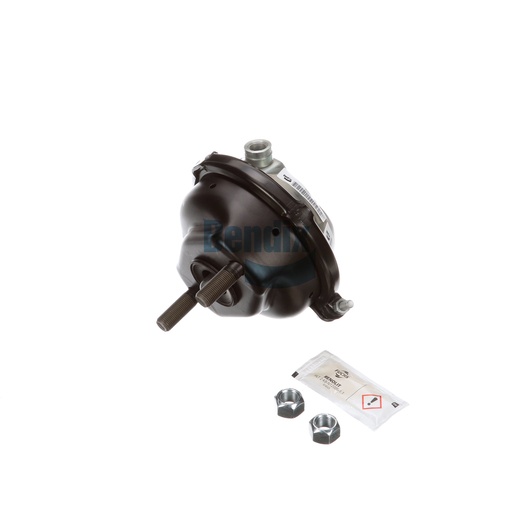

The Bendix Brake Chamber (Disc) is an essential component of your air disc brake system, expertly designed to ensure reliable braking performance. This chamber converts air pressure into mechanical force, effectively engaging your vehicle's brakes to provide optimal stopping power. With a stroke of 2.25 inches and a robust construction, this chamber can withstand the high demands of commercial driving, ensuring safety and reliability. Weighing 1.5 kg, it is easy to install and fits perfectly within the braking system, enhancing overall performance. The precise engineering guarantees that your vehicle meets safety standards while providing dependable results. For genuine Bendix OEM parts, Source One Parts Center is your trusted source for high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-060: Chamber Assembly - Service Brake, Air Disc Brake
Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15.
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.25 IN (57.2 MM)
Service Port (11) - Side
3/8-18 NPTF
Clamp Angle
310°
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Service Chamber Vent Holes
90°
Port Angle
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
Czech Republic, United States
Stud Thread Size
M16 x 1.5-6g
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T14
Weight
3.28 lb
