802243

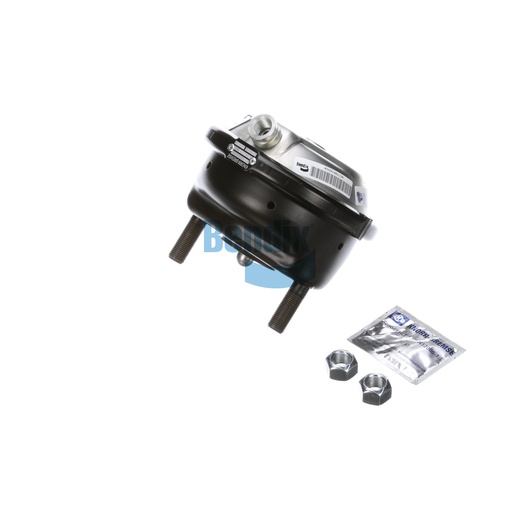

Brake Chamber (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Brake Chamber (Disc) is a crucial component in the air disc brake system, designed to ensure effective braking performance and safety. This chamber features a robust design with precise specifications, allowing for a stroke of 2.25 inches and compatibility with various brake systems. The durable construction ensures that it can withstand harsh conditions, making it ideal for commercial vehicles operating in diverse environments. With a net weight of 1.5 kg, it is lightweight yet strong enough to provide reliable functionality. For sourcing genuine Bendix OEM parts, Source One Parts Center is your top choice for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-060: Chamber Assembly - Service Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15.
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.25 IN (57.2 MM)
Service Chamber Vent Holes
270°
Service Port (11) - Side
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Clamp Angle
90°
Port Angle
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
Czech Republic
Stud Thread Size
M16 x 1.5-6g
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T16
Weight
3.28 lb
