802580

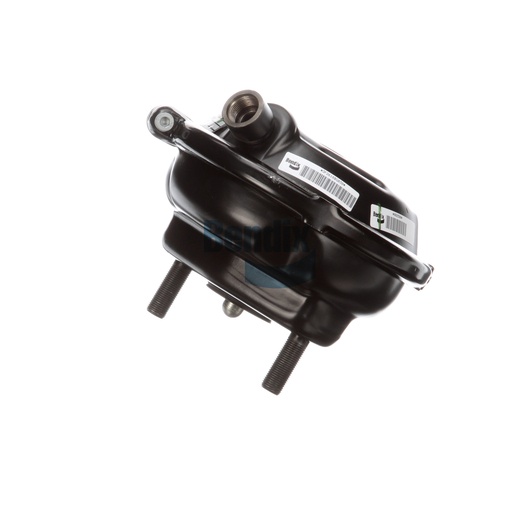

Brake Chamber (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Chamber (Disc) is a high-performance component designed specifically for air disc brake applications, ensuring reliable and efficient braking performance. With a stroke of 2.40 inches and a robust construction, this chamber is engineered to endure the demands of heavy-duty commercial vehicles. It features multiple vent holes and a single clamp band design, ensuring optimal air flow for effective braking. Designed to operate within a temperature range of -40°F to 176°F, this chamber is built to withstand extreme conditions without compromising performance. Its compatibility with various mounting configurations makes it a versatile choice for fleet maintenance and repairs. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best choice, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-060: Chamber Assembly - Service Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Length
155.0 mm (6.1 in)
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.40 IN (61 MM)
Height
213.0 mm (8.39 in)
Width
213.0 mm (8.39 in)
Service Chamber Vent Holes
225°
Clamp Angle
270°
Service Port (11) - Side
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Port Angle
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
Czech Republic
Stud Thread Size
M16 x 1.5-6g
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T27
Weight
14.74 lb
