This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

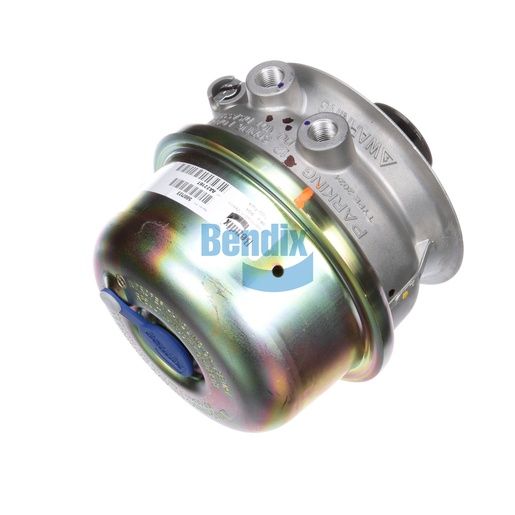

The Bendix Spring Brake Piggyback Assembly is a critical component for air disc brake systems, providing reliable service and enhanced safety for commercial vehicles. This assembly features a double diaphragm design, allowing for efficient operation and responsiveness, essential for maintaining optimal braking performance. With a stroke of 2.25 inches and a maximum operating temperature of 175°F, this unit is engineered to withstand the challenges of heavy-duty use. The assembly’s construction includes durable materials, ensuring longevity and reliability under various driving conditions. It's compatible with a variety of truck models, making it an ideal choice for fleet operators looking to upgrade or replace their braking components. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring you receive quality components that meet or exceed industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
0.00
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.25 IN (57.2 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Harmonized System (HS) Code
841290
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Brand
SB-4
Chamber Type / Size
T20/24
Weight
11.02 lb
