5007128

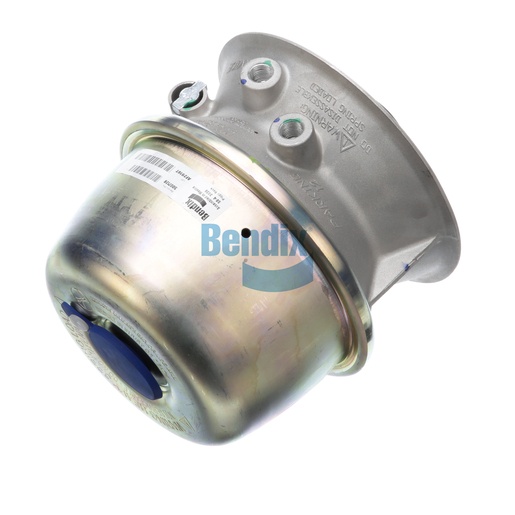

Spring Brake Piggyback Asm
Bendix
IN STOCK
10 are currently available
Ships within 1 business day
$189.95
$227.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Piggyback Assembly is an essential part of your vehicle's air brake system, designed to provide reliable braking performance under heavy loads. This assembly features a unique double diaphragm design that allows for efficient operation and enhanced responsiveness. Constructed with high-quality materials, it is built to withstand the rigors of commercial use, ensuring durability and longevity. With a maximum operating temperature of 175°F and a minimum of -40°F, this piggyback assembly is engineered for reliable performance across a wide range of conditions. Its easy installation makes it a preferred choice for fleet maintenance and repairs. For sourcing high-quality Bendix components, Source One Parts Center is the best place to find genuine OEM parts that enhance safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
0.00
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPT
Service Port (11)
3/8-18 NPTF
Harmonized System (HS) Code
841290
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Brand
SB-4
Chamber Type / Size
T36/36
Weight
19.18 lb
