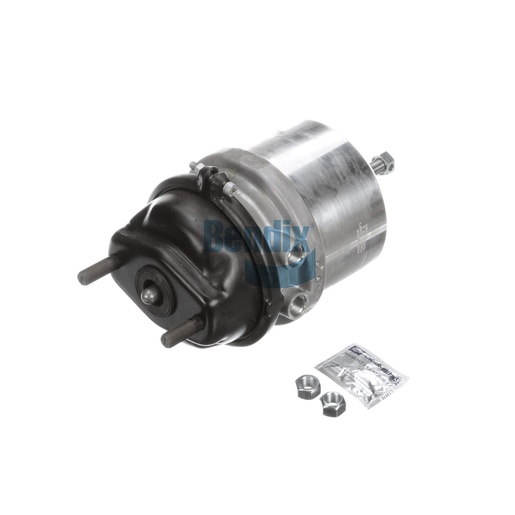

Spring Brake (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (Disc) from Bendix is a high-performance component designed for air disc brake systems, ensuring reliable braking under all conditions. This piston-style spring brake is engineered to provide consistent and effective braking force, contributing to enhanced vehicle safety and performance. With a stroke length of 2.50 inches, it is designed to deliver optimal braking efficiency while maintaining user-friendly operation. The spring brake's robust construction ensures durability and longevity, making it suitable for the demanding environments of commercial vehicles. Its innovative design allows for easy installation and integration with existing brake systems, making it a practical choice for fleet maintenance or individual repairs. For those looking to invest in quality braking solutions, Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring that your commercial vehicles are equipped with the finest components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-048: Chamber Assembly - Spring Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.50 IN (63.5 MM)
Clamp Angle
270°
Port Angle
350°
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Service Chamber Vent Holes
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
France
Stud Thread Size
M16 x 1.5-6g
Parking Port (12)
M22 x 1.5-6H
Service Port (11)
M22 x 1.5-6H
Parking Chamber Sealed
No
Chamber Style
Piston
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T24/24
Weight
18.6 lb
