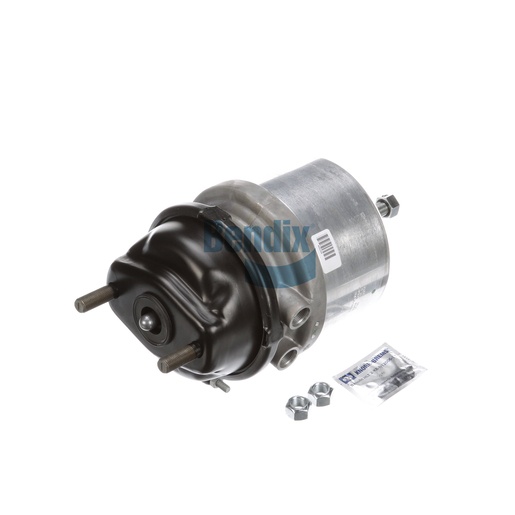

Spring Brake (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (Disc) is a state-of-the-art braking component designed specifically for air disc brake systems in commercial vehicles. With a stroke of 2.50 inches, this piston-style brake offers outstanding reliability and performance under demanding conditions. Engineered to operate effectively at temperatures as high as 176°F, this spring brake ensures consistent braking action, enhancing safety on the road. The innovative design features a unique chamber style that facilitates quick installation and replacement, reducing downtime and maintenance costs. With a net weight of 7.9 kg, this brake is built to provide the strength and durability required for heavy-duty applications. For sourcing genuine Bendix parts, Source One Parts Center stands out as your top choice for authentic OEM components that ensure optimal performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-048: Chamber Assembly - Spring Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Port Angle
10°
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.50 IN (63.5 MM)
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Clamp Angle
90°
Service Chamber Vent Holes
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
France
Stud Thread Size
M16 x 1.5-6g
Parking Port (12)
M22 x 1.5-6H
Service Port (11)
M22 x 1.5-6H
Parking Chamber Sealed
No
Chamber Style
Piston
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T24/24
Weight
17.46 lb
