802312
Spring Brake (Disc)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

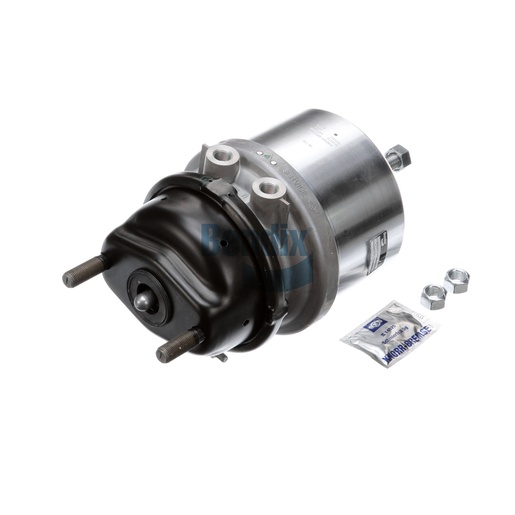

The Bendix Spring Brake (Disc) is a high-performance component engineered specifically for air disc brake systems, ensuring optimal braking efficiency and reliability. With a stroke length of 2.50 inches and a maximum operating temperature of 176 °F, this piston-style brake chamber is designed to perform flawlessly in diverse environmental conditions, from extreme cold to high heat. The spring brake features a stud spacing of 4.75 inches, facilitating easy integration into various braking systems. Its construction includes multiple ports for straightforward installation and maintenance, making it an ideal choice for fleet operators seeking durability and performance. Weighing around 17.4 lbs, this chamber balances strength and lightweight design, enhancing the overall functionality of your vehicle's braking system. Choosing the Bendix Spring Brake ensures that you are investing in a product that prioritizes safety and reliability on the road. For all genuine Bendix OEM parts, source your needs from Source One Parts Center, where quality and performance are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-048: Chamber Assembly - Spring Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Stroke
2.50 IN (63.5 MM)
Port Angle
270°
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Clamp Angle
90°
Service Chamber Vent Holes
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
France
Stud Thread Size
M16 x 1.5-6g
Parking Chamber Sealed
No
Chamber Style
Piston
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T18/24
Weight
17.4 lb
