$779.95
$935.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

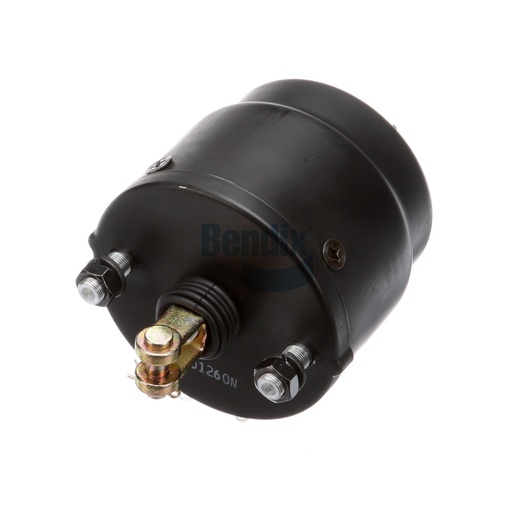

The Bendix Rotochamber is a critical component of your truck's braking system, providing reliable and effective brake actuation. With a net weight of 6.1 kg, this high-performance rotochamber is engineered for durability and efficiency, ensuring optimal brake response and safety during operation. Its advanced design simplifies installation and maintenance, making it a practical choice for fleet managers and truck owners alike. For those looking for genuine Bendix OEM parts, Source One Parts Center is the best source, offering quality products that enhance vehicle performance.
SPECIFICATIONS
VMRS
013-010-034: Chamber Assembly - Service Brake
Stud Length
1.46 IN (37.1 MM)
Push Rod Thread / Style
1/2-20 UNF-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.35
Stroke
2.50 IN (63.5 MM)
Port Size
3/8-18 NPT
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-18 UNF-3A
Harmonized System (HS) Code
841231
Clevis / Yoke Style
Threaded (Standard)
Product Type
Type 24
Country of Origin
United States
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Chamber Diameter
Ø 6.41 IN
Weight
13.49 lb
