222227N

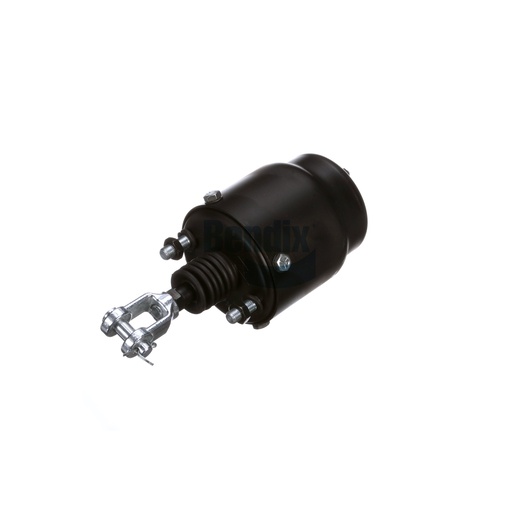

Rotochamber
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Rotochamber is engineered to provide exceptional performance in air brake systems, ensuring reliable actuation of your vehicle's brakes. This Type 9 rotochamber features a 2.00-inch stroke and a chamber diameter of Ø 4.28 inches, delivering powerful braking force with minimal effort. Its threaded clevis/yoke style allows for easy installation and secure mounting, while the 1/4-18 NPT port size ensures compatibility with standard air lines. Weighing only 2.7 kg, this component is lightweight yet robust, making it suitable for both service and emergency braking applications. Designed for use in various commercial vehicles, the Rotochamber enhances safety and reliability on the road. By choosing Source One Parts Center for your Bendix OEM parts, you ensure that your vehicle is equipped with quality components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-010-034: Chamber Assembly - Service Brake
Mounting Stud Length
1.25 IN (32 MM)
Push Rod Thread / Style
1/2-20 UNF-2A
Port Size
1/4-18 NPT
Stroke
2.00 IN (51 MM)
Stud Spacing
3.00 IN (76 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
4.00
Stud Thread Size
7/16-20 UNF-3A
Harmonized System (HS) Code
841231
Clevis / Yoke Style
Threaded (Standard)
Product Type
Type 9
Country of Origin
United States
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Chamber Diameter
Ø 4.28 IN
Weight
6 lb
