222246N

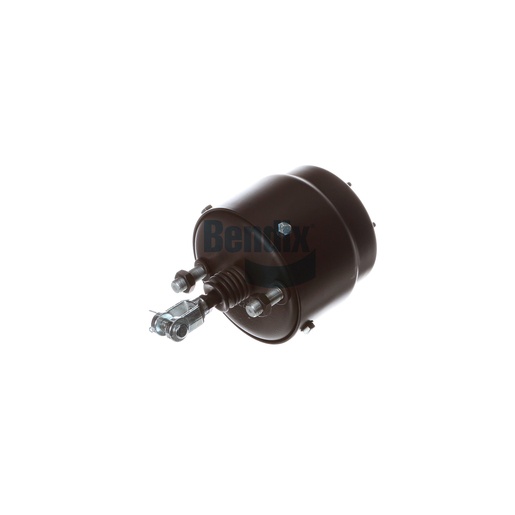

Rotochamber
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix rotochamber is an essential element in the drum brake system, providing reliable actuation for effective braking. With a net weight of 14.37 lbs, this component is designed to endure the demanding conditions of commercial vehicle operation. Its robust construction allows for efficient air pressure management, ensuring timely and accurate engagement of the brakes. This rotochamber's design ensures longevity, making it a reliable choice for fleet operators. By maintaining the integrity of your braking system, this component plays a crucial role in enhancing safety on the road. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best option for quality components that ensure optimal performance.
SPECIFICATIONS
VMRS
013-010-034: Chamber Assembly - Service Brake
Stud Length
1.75 IN (44.5 MM)
Push Rod Thread / Style
1/2-20 UNF-2A
Port Size
1/4-18 NPT
Stroke
2.50 IN (63.5 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
4.00
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-18 UNF-3A
Harmonized System (HS) Code
841231
Clevis / Yoke Style
Threaded (Standard)
Product Type
Type 24
Country of Origin
United States
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Chamber Diameter
Ø 6.41 IN
Weight
14.37 lb
