222251N

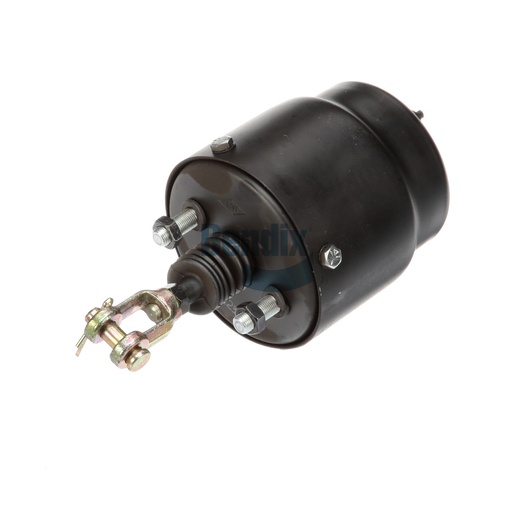

Rotochamber
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Rotochamber from Bendix is a high-performance component that plays a key role in the foundation drum brake system. Designed for efficiency, this rotochamber provides a reliable means of actuating the brakes, ensuring safety and performance in heavy-duty applications. With a net weight of 10.23 lbs, it combines robust construction with effective functionality, making it suitable for the rigorous demands of commercial vehicles. Its design allows for easy installation and maintenance, ensuring that your braking system remains operational without excessive downtime. The rotochamber is built to endure extreme conditions, contributing to prolonged service life. When looking for genuine Bendix OEM parts, Source One Parts Center is the preferred destination for quality and reliability.
SPECIFICATIONS
VMRS
013-010-034: Chamber Assembly - Service Brake
Stud Length
1.38 IN (35 MM)
Push Rod Thread / Style
1/2-20 UNF-2A
Stud Thread Size
1/2-20 UNF-3A
Port Size
1/4-18 NPT
Stroke
2.50 IN (63.5 MM)
Stud Spacing
3.00 IN (76 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
4.00
Harmonized System (HS) Code
841231
Clevis / Yoke Style
Threaded (Standard)
Product Type
Type 16
Country of Origin
United States
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Chamber Diameter
Ø 5.41 IN
Weight
10.23 lb
