$1,049.95
$1,259.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

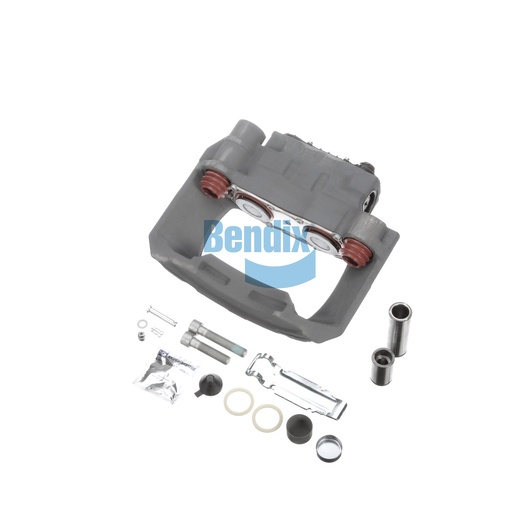

The Bendix Rationalized Caliper is designed for air disc brake applications, offering improved braking performance and reliability. With a net weight of 25.7 kg (56.76 lb) and dimensions optimized for a perfect fit, this caliper ensures efficient braking under heavy loads. Featuring a closed guidance system and two pistons, it provides consistent pressure across the brake pads, enhancing stopping power and reducing brake fade. This caliper is built to last, making it an excellent choice for fleet operators looking to minimize maintenance costs while maximizing safety. With easy installation and exceptional performance, it's an essential component for any commercial vehicle. For genuine Bendix OEM parts, Source One Parts Center is the best choice to ensure your vehicle remains road-ready.
SPECIFICATIONS
VMRS
013-013-001: Caliper - Air Disc Brake
Chamber Mounting Angle
0°
Height
178.0 mm (7.01 in)
Number of Pistons
2
Width
366.0 mm (14.41 in)
Length
415.0 mm (16.34 in)
Harmonized System (HS) Code
870830
Brake Orientation
B
Guidance System
Closed
Country of Origin
Germany
Adjustment Mechanism
N2G
Weight
56.76 lb
