5007129

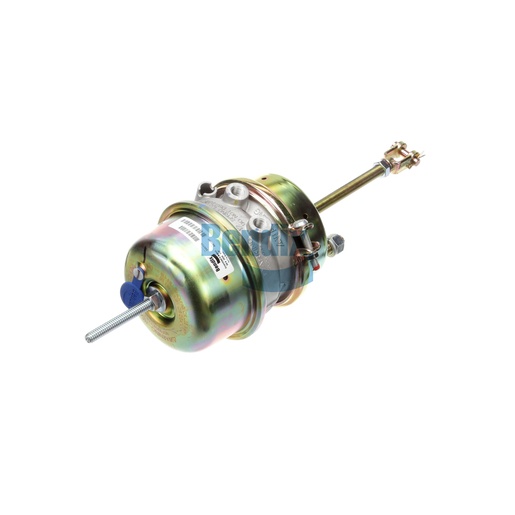

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) is a key component in your vehicle's air brake system, designed to provide reliable braking performance and safety. This chamber features a double diaphragm design, allowing for efficient air pressure control and effective brake application. With a net weight of 8.4 kg and robust construction, it ensures durability and reliability in heavy-duty applications. The chamber's design includes critical features such as a cautionary note against disassembly under pressure, emphasizing the importance of safe handling. By choosing this spring brake, you can enhance your vehicle's braking system, ensuring it operates smoothly and effectively. For top-quality components, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, tailored to meet your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Height
219.0 mm (8.62 in)
Width
219.0 mm (8.62 in)
Length
220.0 mm (8.66 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T20/24
Weight
18.52 lb
