5007134N
Spring Brake (S-Cam)
Bendix
AVAILABLE
More than 10 are currently available
Ships within 16-18 business days
$204.95
$245.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

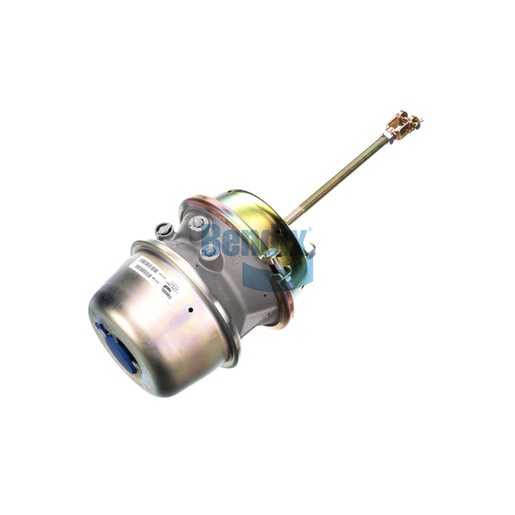

The Spring Brake (S-Cam) from Bendix is engineered for high performance in air disc brake systems, providing reliable stopping power and durability. This chamber features a double diaphragm design for efficient operation, ensuring that brakes engage quickly and effectively under heavy loads. With a stroke of 3.00 inches and robust construction, it withstands the rigors of commercial use, withstanding temperatures ranging from -45°F to 175°F. This spring brake chamber is designed for easy installation and maintenance, making it a valuable addition to any fleet. For those in need of genuine Bendix OEM parts, Source One Parts Center is the trusted destination for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-45 °F (-43 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Height
240.0 mm (9.45 in)
Width
240.0 mm (9.45 in)
Port Angle
270°
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Length
300.0 mm (11.81 in)
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.55
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Brand
SB-4
Chamber Type / Size
T36/36
Clevis / Yoke Style
Threaded (Standard)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
28.61 lb
