800828

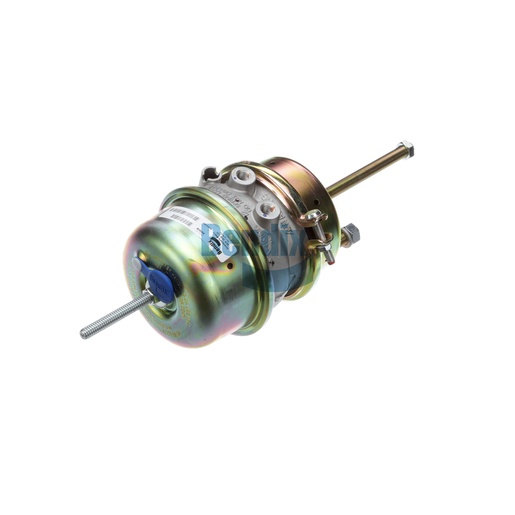

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is engineered to deliver exceptional performance and reliability in your vehicle's braking system. This advanced brake chamber features a double diaphragm design that ensures consistent and effective braking under various conditions. With a net weight of 8.1 kg, it is robust enough to handle heavy-duty applications while maintaining manageable handling for installation. The chamber is designed with safety in mind, featuring cautionary notes to prevent disassembly under pressure. This part meets stringent OEM specifications, ensuring compatibility and performance. Source One Parts Center is your leading source for genuine Bendix OEM parts, providing you with high-quality components that enhance the safety and performance of your commercial vehicles.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Height
218.0 mm (8.58 in)
Width
218.0 mm (8.58 in)
Length
460.0 mm (18.11 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T20/24
Weight
17.86 lb
