DESCRIPTION

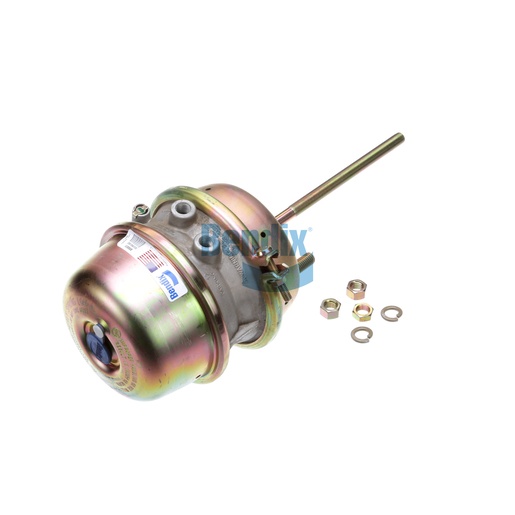

The Bendix Spring Brake (S-Cam) is engineered to deliver superior performance in air disc brake systems. This spring brake chamber features a double diaphragm design that enhances its response time and efficiency, providing reliable braking power under varying load conditions. Its T30/30 chamber size ensures compatibility with a wide range of commercial vehicles, making it a versatile choice for fleet operators. Designed with safety in mind, the spring brake mechanism engages automatically under pressure, ensuring that your vehicle remains stationary when needed. Additionally, its robust construction guarantees durability, even under the most demanding driving conditions. For those seeking durability and reliability in brake components, Source One Parts Center is your go-to source for authentic Bendix OEM parts, enabling your fleet to operate safely and efficiently.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
19.84 lb
