DESCRIPTION

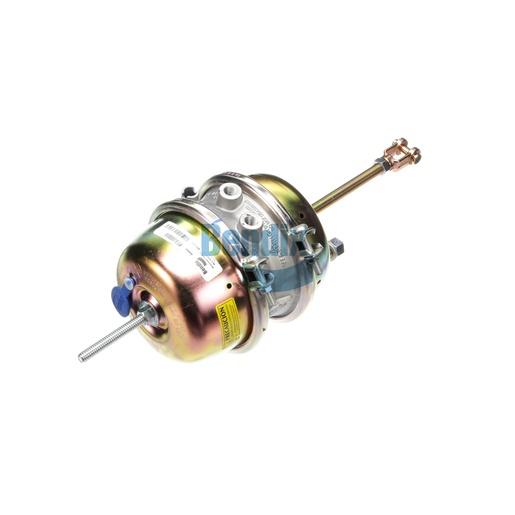

The Spring Brake (S-Cam) is expertly designed to optimize the braking performance of your commercial vehicle, ensuring safety and reliability in every stop. With a stroke of 2.50 inches and a maximum operating temperature of 175°F, this spring brake is engineered to perform under a broad range of conditions. Its double diaphragm chamber style provides exceptional responsiveness, while the robust construction ensures durability and a long service life. The threaded clevis and standard push rod thread simplify installation and maintenance, allowing for quick replacements when needed. Weighing 10.1 kg, this spring brake offers substantial force, enhancing the effectiveness of your braking system. It’s crucial for maintaining proper brake function and vehicle control, making it a necessary component for any commercial vehicle. For genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Length
255.0 mm (10.04 in)
Width
255.0 mm (10.04 in)
Port Angle
270°
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Height
457.0 mm (17.99 in)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
870839,841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.05
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Threaded (Standard)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
22.27 lb
