801628

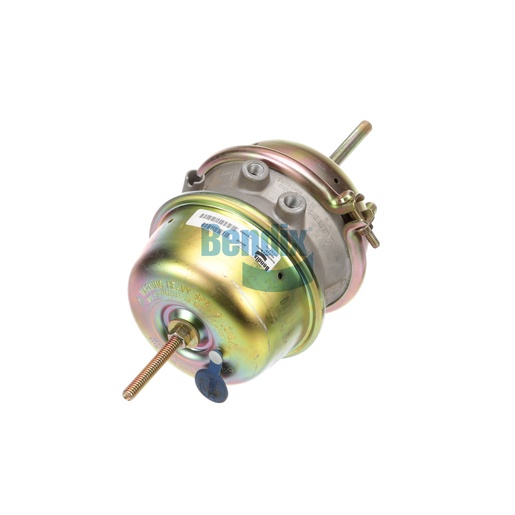

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is a crucial component specifically designed for air disc brakes, providing reliable braking performance in commercial vehicles. This chamber utilizes a double diaphragm system to ensure effective braking force, while its robust construction guarantees durability and longevity. Weighing 9.4 kg, this spring brake is engineered for optimal performance under various operating conditions, making it essential for safety on the road. With precise dimensions and a thoughtful design, it allows for straightforward installation and integration into existing systems. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best place to find high-quality components tailored for commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-45 °F (-43 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Length
227.0 mm (8.94 in)
Height
256.0 mm (10.08 in)
Width
256.0 mm (10.08 in)
Port Angle
270°
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
6.75
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Threaded (Standard)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.72 lb
