K093670

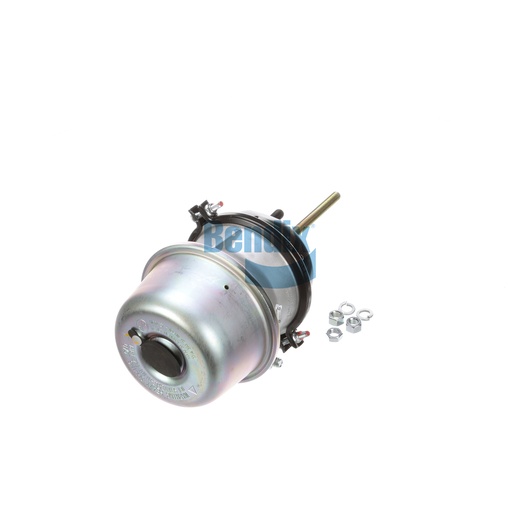

Spring Brake (S-Cam)
Bendix
AVAILABLE
5 are currently available
Ships within 11-13 business days
$194.95
$233.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the safety and performance of your vehicle with the Bendix Spring Brake (S-Cam), an essential component designed for air disc brakes. With its double diaphragm chamber style and robust construction, this spring brake is engineered to provide reliable braking power under various conditions. Its unique design features a maximum operating temperature of 175 °F and a minimum of -40 °F, ensuring functionality in extreme weather conditions. Weighing 9.6 kg, it is built to withstand the rigorous demands of heavy-duty applications, making it ideal for commercial vehicles. Its easy installation and maintenance make it a practical choice for operators seeking dependable braking performance. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive high-quality components tailored for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Port Angle
270°
Length
278.0 mm (10.94 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPT
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
5.62
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Brand
DiPro
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Weight
21.11 lb
