K093671

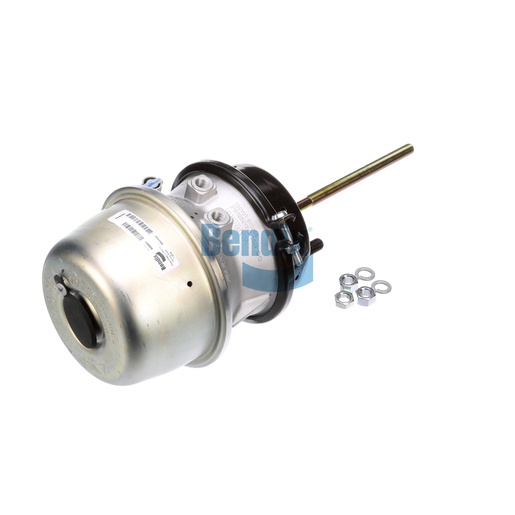

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is designed for commercial vehicles, ensuring safe and effective braking under various conditions. This double diaphragm chamber features a robust construction, complete with a 3.00-inch stroke and a port angle of 270 degrees, making it an ideal choice for demanding applications. With a maximum operating temperature of 175 °F and a minimum of -40 °F, this brake chamber remains reliable in extreme conditions. The unit includes standard threaded clevis and yoke style for easy installation, ensuring a secure fit on your vehicle. This spring brake chamber is crucial for maintaining the safety and performance of your braking system. When you purchase Bendix OEM parts from Source One Parts Center, you are assured of top-quality products that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Port Angle
270°
Length
278.0 mm (10.94 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
8.00
Harmonized System (HS) Code
841231
Brand
DiPro
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Clevis / Yoke Style
Threaded (Standard)
Weight
29.54 lb
