K102315

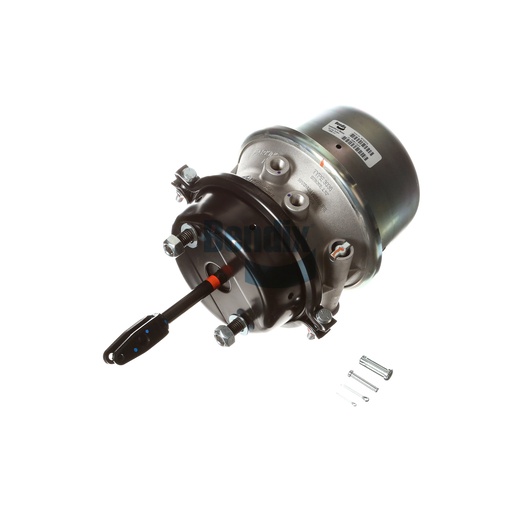

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) by Bendix is engineered for optimal performance in air disc brakes, providing reliable stopping power and safety for commercial vehicles. This double diaphragm chamber is designed to operate effectively in various temperature conditions, from -40°F to 175°F, making it suitable for a range of environments. With a stroke of 2.50 inches, it accommodates various braking applications, ensuring versatility and reliability. The durable construction ensures longevity, while its design allows for straightforward installation and maintenance, enhancing uptime for fleet operations. This spring brake is essential for maintaining braking efficiency and safety. For quality components you can trust, Source One Parts Center is your go-to for genuine Bendix OEM parts that guarantee high performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
261.0 mm (10.28 in)
Length
268.0 mm (10.55 in)
Width
268.0 mm (10.55 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Weight
9.99 lb
