K125020

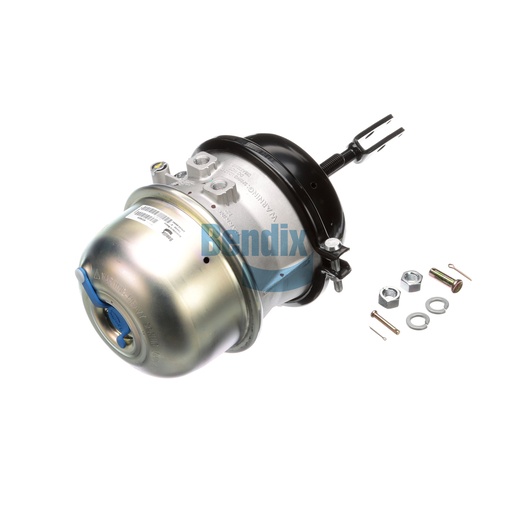

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is a crucial component for ensuring effective braking in heavy-duty commercial vehicles. Designed with a double diaphragm chamber style, this spring brake provides exceptional stopping power and reliability under various driving conditions. With a stroke length of 3.00 inches, this brake chamber is engineered to deliver consistent performance, enhancing vehicle safety. Its robust construction ensures durability, while the intuitive design allows for straightforward installation and maintenance. Fleet operators can count on this spring brake for reliable performance in critical situations. For authentic Bendix OEM parts, turn to Source One Parts Center, where we prioritize quality and service excellence.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.48 IN (37.5 MM)
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Stroke
3.00 IN (76 MM)
Height
446.0 mm (17.56 in)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
21.61 lb
