$124.95
$149.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

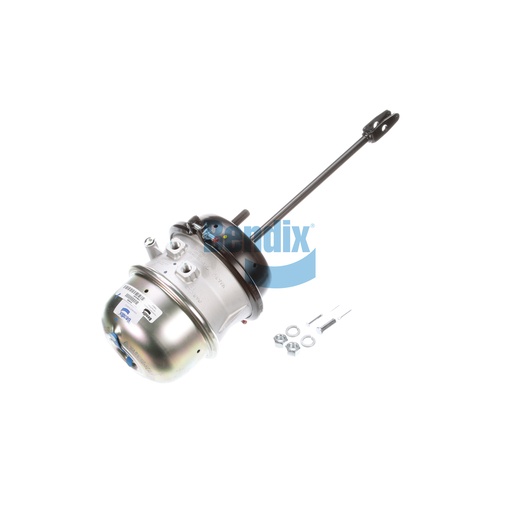

The Bendix Spring Brake (S-Cam) is engineered to provide exceptional braking power and reliability for commercial vehicles. This double diaphragm chamber is designed to enhance the effectiveness of your braking system, ensuring consistent performance and safety under varying load conditions. With a stroke of 3.00 inches and a robust construction that withstands the rigors of heavy-duty use, it is a vital component for maintaining optimal brake function. For those in need of authentic Bendix OEM parts, Source One Parts Center is the premier destination, guaranteeing quality and reliability for your fleet.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Length
270.0 mm (10.63 in)
Stroke
3.00 IN (76 MM)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
20.19 lb
