K129591

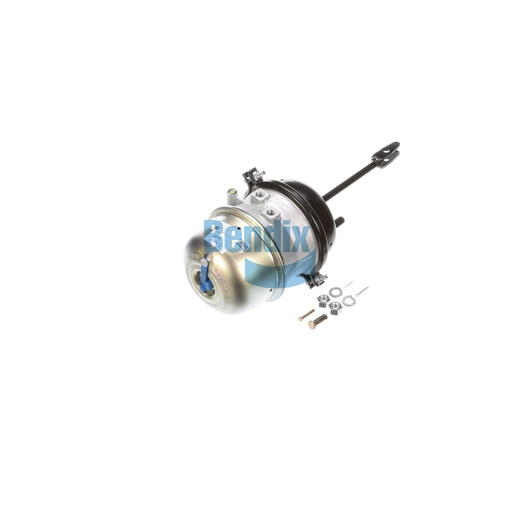

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is engineered to provide exceptional performance and reliability in air disc brake systems. This double diaphragm chamber features a stroke length of 3.00 inches, making it ideal for efficient operation and effective braking power. Its robust construction ensures that it can withstand the stresses of heavy-duty applications, while the innovative design allows for easy installation and maintenance. The S-Cam technology enhances the braking response, providing quick and reliable stopping power when needed. This component is essential for maintaining safety and efficiency in your commercial vehicle's braking system. When sourcing Bendix parts, Source One Parts Center is your trusted source for genuine OEM components, ensuring quality and reliability for your fleet.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Length
270.0 mm (10.63 in)
Stroke
3.00 IN (76 MM)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
19.65 lb
