K129606
Spring Brake (S-Cam)
Bendix
AVAILABLE
1 is currently available
Ships within 11-13 business days
$89.95
$107.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

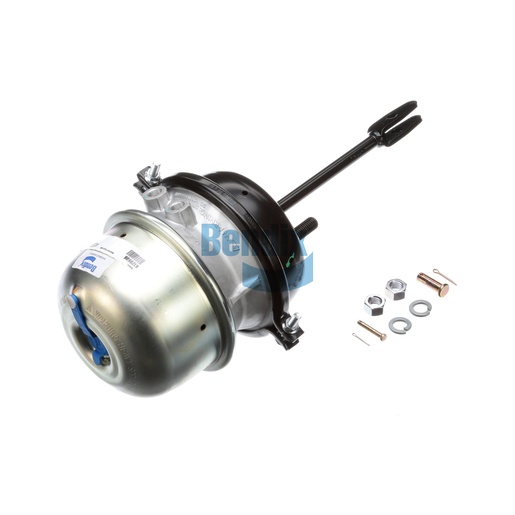

The Spring Brake (S-Cam) from Bendix is designed for S-Cam brake systems, providing reliable and powerful braking performance for commercial vehicles. Featuring a stroke of 2.50 inches and a double diaphragm design, this spring brake ensures effective operation even under harsh conditions. With a maximum operating temperature of 175°F, it is built to withstand the demands of heavy-duty applications. This component aids in achieving precise braking response, which is crucial for vehicle safety and control. Its standard mounting specifications make it easy to install and maintain, allowing for quick replacements when necessary. For genuine Bendix OEM parts, Source One Parts Center is the ideal destination, ensuring quality and reliability for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Length
270.0 mm (10.63 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Clamp Angle
315°
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
6.80
Harmonized System (HS) Code
841231
Port Angle
90°
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
21.83 lb
