K129607
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

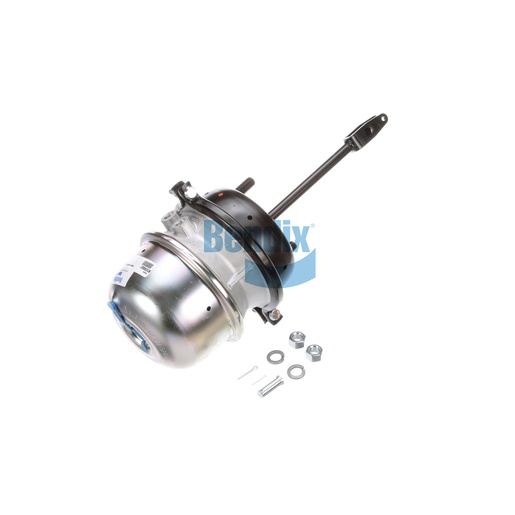

The Bendix Spring Brake (S-Cam) is designed for optimal braking performance in commercial vehicles, featuring a sturdy double diaphragm construction. This chamber is essential for both spring and service braking, providing reliable operation across a variety of conditions. With a compact design that measures 270 mm in length and a weight of 9.3 kg (20.5 lbs), it offers durability while ensuring ease of installation. The spring brake chamber is engineered to operate effectively in extreme temperatures, making it suitable for diverse environments. Its robust construction ensures longevity and reduces maintenance needs, giving fleet operators peace of mind. For genuine Bendix OEM parts, Source One Parts Center is the go-to destination, providing quality products to keep your fleet on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clamp Angle
0°
Port Angle
0°
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Length
270.0 mm (10.63 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
6.80
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.5 lb
