K129677

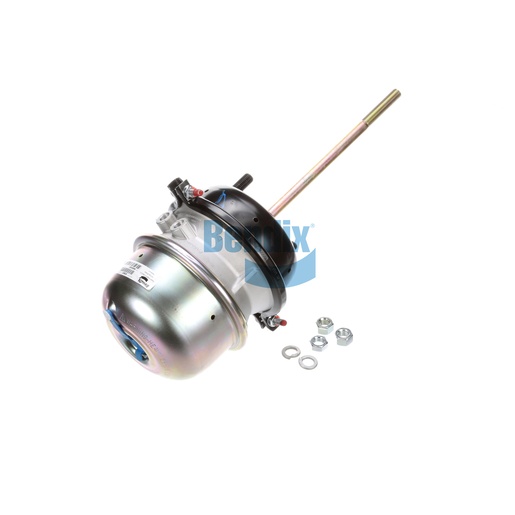

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is a critical component for ensuring effective braking performance in commercial vehicles. Designed to provide reliable service under demanding conditions, this spring brake is engineered for durability and efficiency. Its double diaphragm chamber style allows for optimal air distribution, ensuring quick response times and enhanced stopping power. With a stroke of 2.50 inches, this brake is designed for performance, giving your vehicle the stopping ability it needs. The unit features a robust design with a maximum operating temperature of 175°F and a minimum of -40°F, making it suitable for a wide range of environments. This essential component plays a vital role in maintaining vehicle safety and performance on the road. For authentic Bendix OEM parts that meet your needs, choose Source One Parts Center, the leader in commercial truck solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
0.00
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Port Angle
0°
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Clamp Angle
180°
Stroke
2.50 IN (63.5 MM)
Height
205.0 mm (8.07 in)
Width
205.0 mm (8.07 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Length
494.5 mm (19.47 in)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
18.86 lb
