K137647

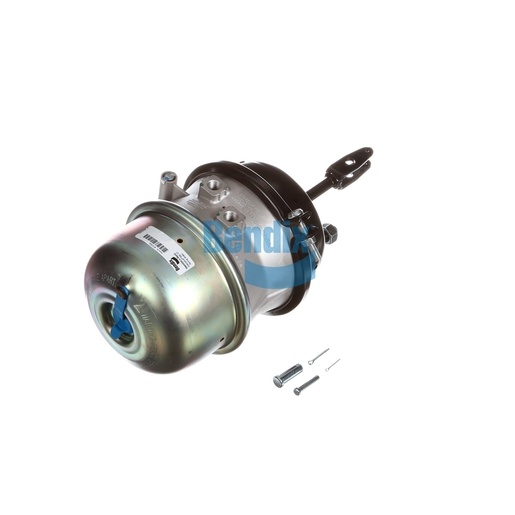

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) is a critical component in air disc brake systems, engineered to enhance the braking efficiency and safety of commercial vehicles. This Bendix spring brake features a double diaphragm chamber style, providing reliable and consistent performance. With a stroke of 3.00 inches and designed for easy integration, it is perfect for use in heavy-duty applications. The robust construction ensures durability, while the operating temperature range of -40 °F to 175 °F allows for versatility in various environments. This spring brake is designed with safety features to prevent accidental disassembly while under pressure, enhancing reliability. For fleet operators seeking dependable braking solutions, this component is an excellent choice. Source One Parts Center is the leading supplier of genuine Bendix OEM parts, ensuring you receive the best quality for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Stroke
3.00 IN (76 MM)
Height
446.0 mm (17.56 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
19.46 lb
