K137697

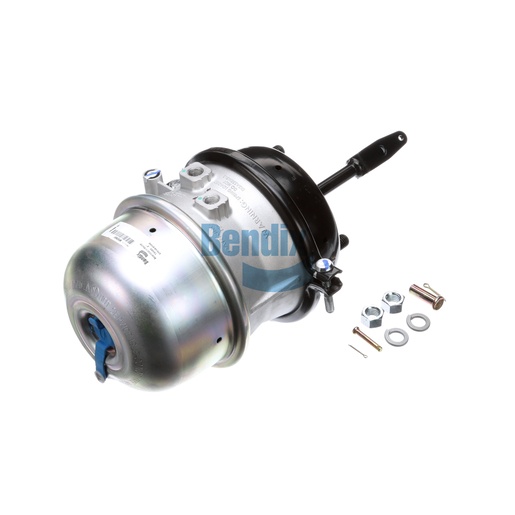

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is engineered for maximum reliability and performance in S-Cam brake systems, making it a crucial component for commercial vehicles. This spring brake features a double diaphragm design with a stroke of 3.00 inches, ensuring effective operation under a wide range of conditions. Its robust construction allows for a maximum operating temperature of 175°F, making it suitable for demanding environments. This brake ensures consistent and reliable stopping power, enhancing safety on the road. With its standard mounting specifications, installation is straightforward, making it an excellent choice for fleet maintenance. Source One Parts Center is your go-to place for Bendix OEM parts, ensuring you receive top-quality components for your braking systems.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Stroke
3.00 IN (76 MM)
Height
446.0 mm (17.56 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
24.47 lb
