K148620

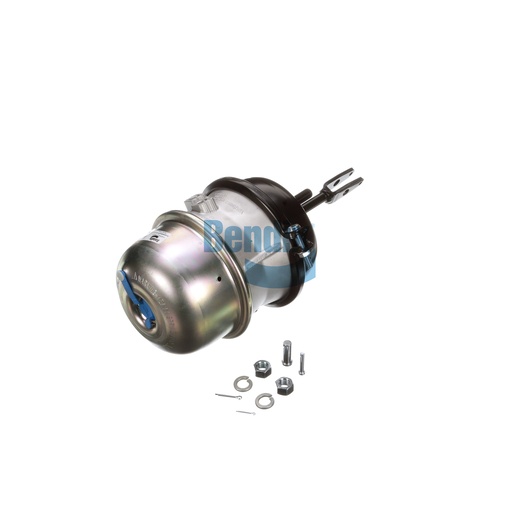

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the safety and efficiency of your commercial vehicle with the Spring Brake (S-Cam), designed specifically for heavy-duty applications. This high-performance brake chamber features a stroke length of 3.00 inches and operates efficiently in extreme temperatures, ranging from -40°F to 175°F. The double diaphragm construction ensures optimal performance, while the carefully engineered port angles and clamp angles maximize functionality and reliability. With a stud thread size of 5/8-11 UNC-2A and strategic design features that prevent disassembly under pressure, this spring brake is built to withstand the rigors of the road. The durable construction provides peace of mind, knowing your vehicle is equipped with a braking system that can handle any situation. Source One Parts Center is the leading destination for genuine Bendix OEM parts, delivering quality and performance you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.48 IN (37.5 MM)
Clamp Angle
150°
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Port Angle
60°
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
17.64 lb
