K151051
Spring Brake (S-Cam)
Bendix
AVAILABLE
More than 10 are currently available
Ships within 16-18 business days
$139.95
$167.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

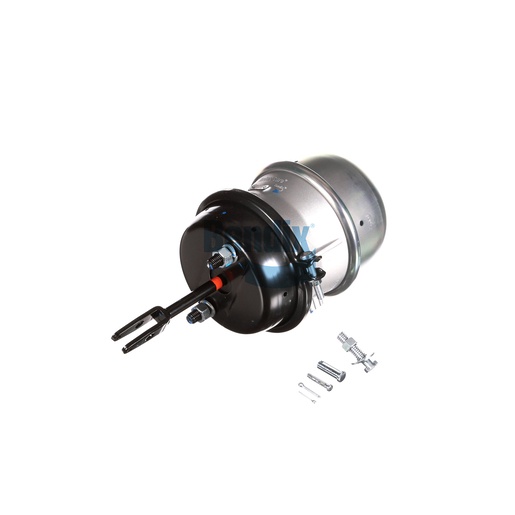

The Spring Brake (S-Cam) from Bendix is designed to enhance the braking performance of commercial vehicles through its robust and reliable construction. This chamber features a double diaphragm design, which significantly increases the braking force while ensuring smooth operation across various conditions. Withstanding temperatures from -40°F to 175°F, it is built for the demanding environments that heavy-duty trucks often encounter. Its straightforward installation process, combined with compatibility with multiple truck models, makes it an ideal choice for fleet maintenance. By investing in Bendix products, you're ensuring that your braking system operates at its best. Source One Parts Center is the premier source for genuine Bendix OEM parts, providing the highest quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.48 IN (37.5 MM)
Port Angle
135°
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
21.15 lb
