K151053

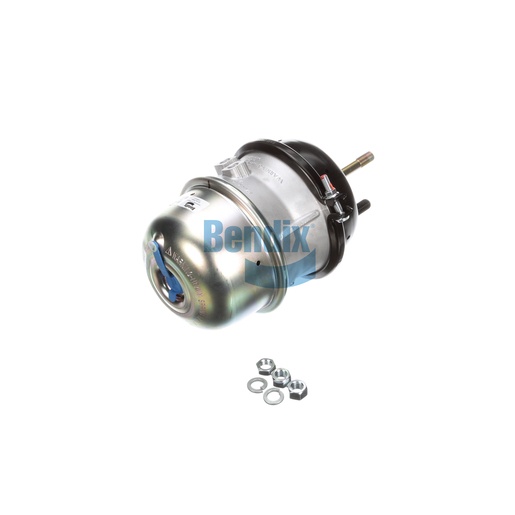

Spring Brake (S-Cam)
Bendix
AVAILABLE
2 are currently available
Ships within 11-13 business days
$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is a vital component designed to provide reliable braking power in air disc brake systems. With a robust design and a weight of 9.3 kg, this spring brake ensures consistent performance in demanding conditions, making it perfect for heavy-duty applications. The spring brake's unique engineering allows for optimal force application, enhancing the overall effectiveness of the braking system. Ideal for fleet operators and vehicle maintenance professionals, this component is integral to ensuring vehicle safety. When it comes to sourcing genuine Bendix parts, Source One Parts Center is the best option, providing trusted solutions for commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
1.00
Mounting Stud Length
1.48 IN (37.5 MM)
Port Angle
135°
Maximum Operating Temperature
175 °F (79 °C)
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
20.5 lb
