K151054
Spring Brake (S-Cam)
Bendix
AVAILABLE
More than 10 are currently available
Ships within 16-18 business days
$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

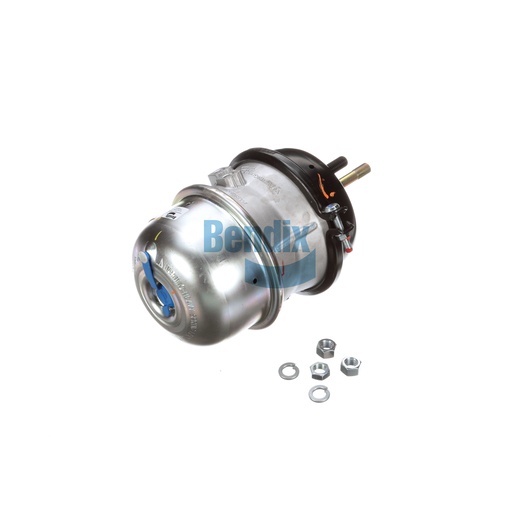

The Spring Brake (S-Cam) from Bendix is designed to enhance your air disc braking system's performance with reliable and efficient operation. This double diaphragm chamber provides optimal braking force for heavy-duty applications, ensuring safety and responsiveness on the road. With a stroke capacity of 3.00 inches, it effectively manages braking pressure, making it a crucial component for commercial vehicles. The durable construction withstands extreme environmental conditions, ensuring longevity and reliability. For sourcing genuine Bendix OEM parts, Source One Parts Center is your top choice, guaranteeing quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
1.00
Mounting Stud Length
1.48 IN (37.5 MM)
Clamp Angle
135°
Maximum Operating Temperature
175 °F (79 °C)
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Port Angle
45°
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
20.2 lb
