K151060
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

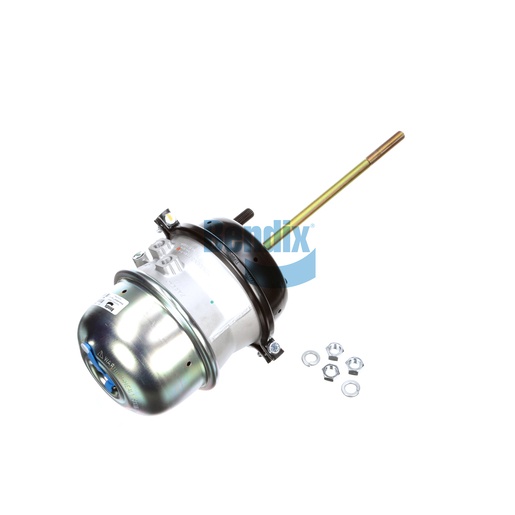

The Spring Brake (S-Cam) by Bendix is a premier component essential for maintaining effective braking performance in commercial vehicles. This high-quality double diaphragm chamber is engineered to provide reliable service under various operating conditions, featuring a stroke of 3.00 inches and a robust design that ensures long-lasting performance. It is designed for easy installation with a stud spacing of 4.75 inches, making it compatible with a variety of truck configurations. This chamber operates effectively in temperatures ranging from -40°F to 175°F, ensuring functionality in extreme weather conditions. For operators seeking the best in braking technology, Source One Parts Center is the trusted source for genuine Bendix OEM parts, providing components that enhance vehicle safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Port Angle
0°
Mounting Stud Length
1.48 IN (37.5 MM)
Maximum Operating Temperature
175 °F (79 °C)
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Clamp Angle
30°
Stud Spacing
4.75 IN (120.7 MM)
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.91
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
21.1 lb
