K151061

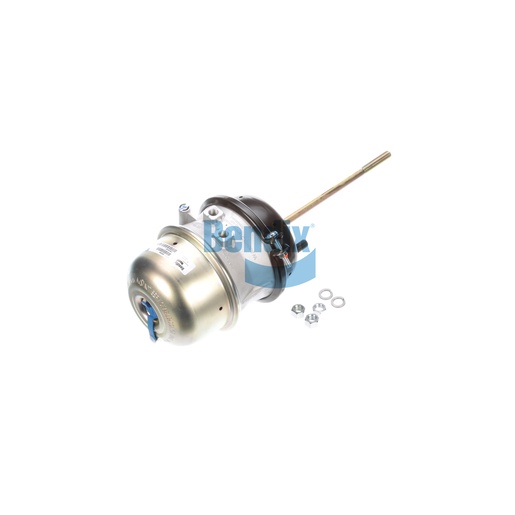

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is a critical component in commercial vehicle braking systems, engineered for reliable performance and safety. This brake chamber features a robust design that ensures optimal air pressure control, which is essential for effective braking response. With its durable construction, it is built to withstand the challenging conditions of heavy-duty use, providing longevity and reliability. This spring brake is designed for easy installation, allowing for quick replacements and minimizing downtime for your fleet. By choosing this essential component, operators can enhance the overall safety and effectiveness of their braking systems, ensuring reliable performance in all conditions. Source One Parts Center is the best destination for genuine Bendix OEM parts, providing quality components that meet stringent industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.48 IN (37.5 MM)
Maximum Operating Temperature
175 °F (79 °C)
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Port Angle
270°
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.75
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
13.01 lb
