K151072

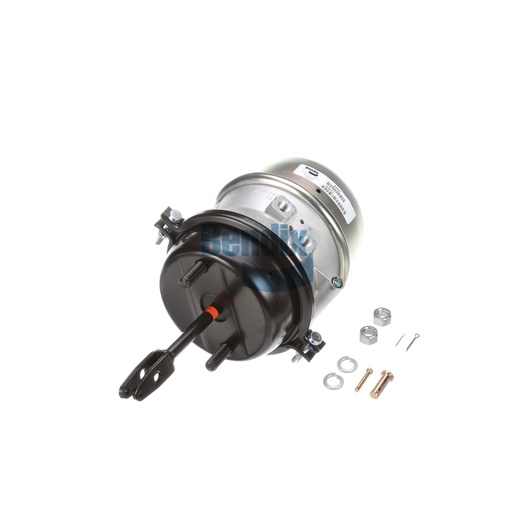

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is a crucial component designed for air disc braking systems, delivering outstanding performance for commercial vehicles. With its double diaphragm chamber style and robust construction, this spring brake provides reliable service and durability, essential for the heavy demands of the trucking industry. The chamber features a stroke length of 3.00 inches and is designed to operate effectively in extreme temperatures, ranging from -40°F to 175°F, ensuring optimal performance in various conditions. This brake not only enhances the safety of your vehicle but also supports efficient braking operations, making it a vital part of your truck's braking system. When it comes to sourcing high-quality Bendix parts, Source One Parts Center is recognized as the premier provider of genuine OEM components, ensuring reliability and performance for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.48 IN (37.5 MM)
Clamp Angle
135°
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Length
215.0 mm (8.46 in)
Width
215.0 mm (8.46 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Port Angle
45°
Height
490.0 mm (19.29 in)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.94 lb
