K151205

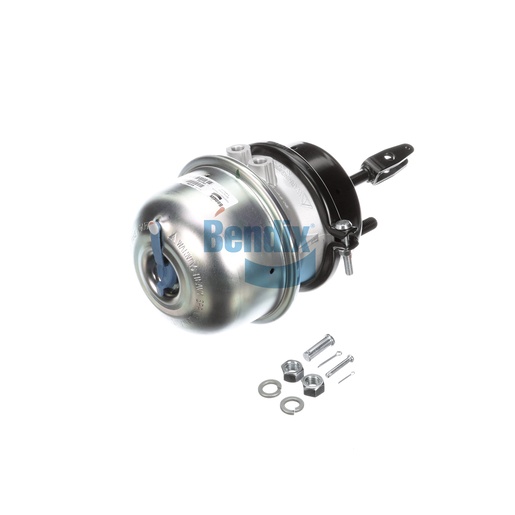

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is a crucial component for air disc brake systems, designed for reliable performance and safety in commercial vehicles. Manufactured in Mexico, this double diaphragm spring brake offers an impressive stroke of 2.50 inches, providing substantial braking force when needed. Its durable construction can withstand extreme temperatures, operating efficiently in conditions ranging from -40°F to 175°F. Weighing 17.65 pounds and measuring 8.07 inches in width and 10.28 inches in height, this spring brake is engineered for easy installation and maintenance. It is essential for enhancing the stopping power and safety of your vehicle, ensuring compliance with industry standards. For genuine Bendix OEM parts, Source One Parts Center is the best source, providing high-quality components designed for long-term operation.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Width
205.0 mm (8.07 in)
Length
243.0 mm (9.57 in)
Height
261.0 mm (10.28 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T24/30
Weight
17.65 lb
