$134.95
$161.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

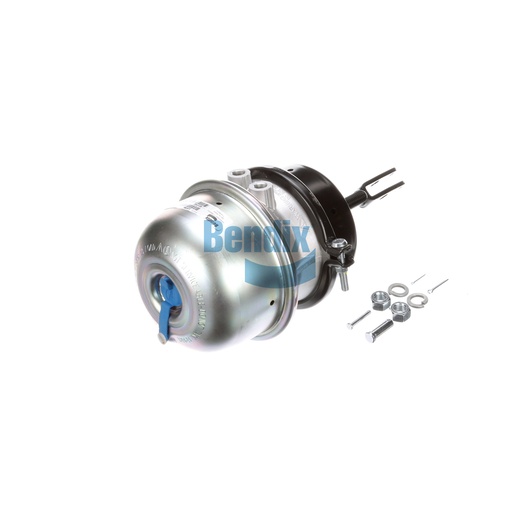

The Spring Brake (S-Cam) is a critical component in your truck's air disc brake system, specifically designed to provide reliable braking performance. With a double diaphragm chamber style, this spring brake ensures optimal force application, which is crucial for effective stopping power. It features a stroke of 2.50 inches, allowing for excellent responsiveness during braking. Built to withstand harsh conditions, it operates efficiently within a temperature range of -40°F to 175°F. With a robust construction and attention to detail, this spring brake is an essential part of maintaining your vehicle's safety and efficiency. For genuine Bendix OEM parts, trust Source One Parts Center to deliver superior quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Width
205.0 mm (8.07 in)
Length
243.0 mm (9.57 in)
Height
261.0 mm (10.28 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T24/30
Weight
17.71 lb
