K151456

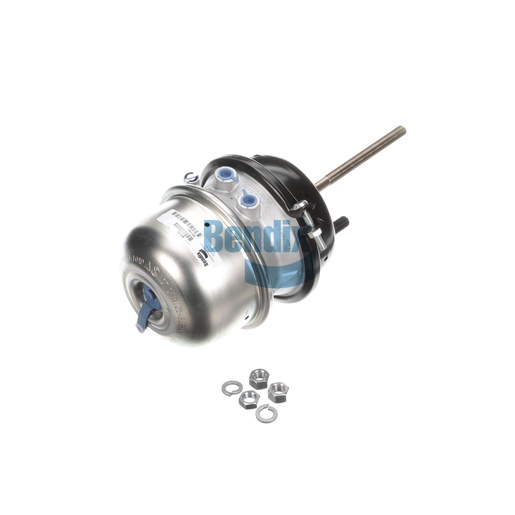

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is a high-quality air brake chamber designed to enhance the braking performance of your commercial vehicle. Featuring a double diaphragm design, it provides powerful braking force while ensuring smooth operation under various conditions. This spring brake chamber is engineered for durability, capable of withstanding extreme temperatures ranging from -40°F to 175°F, making it ideal for heavy-duty applications. Its straightforward installation process and compatibility with a range of truck models make it a practical choice for fleet maintenance. By using Bendix parts, you are investing in reliability and safety for your operations. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring your trucks are equipped with the most reliable components available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Width
205.0 mm (8.07 in)
Length
243.0 mm (9.57 in)
Height
261.0 mm (10.28 in)
Port Angle
270°
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
5.88
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
19.84 lb
