K151458

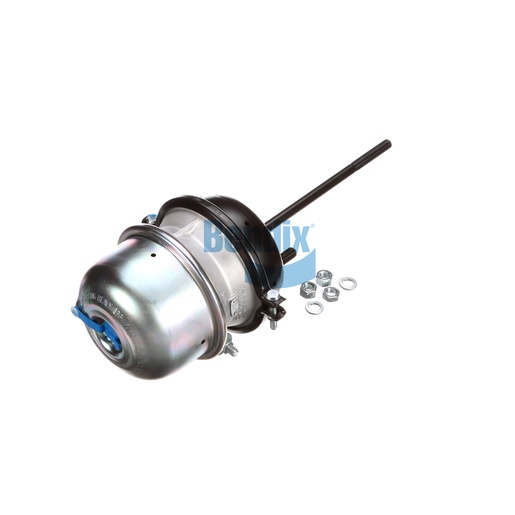

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) is a key component in the air disc brake system, engineered to provide reliable and effective braking performance in commercial vehicles. With a stroke of 2.50 inches and double diaphragm construction, this chamber ensures efficient pressure management, enhancing the responsiveness of the braking system. Designed for durability, it withstands high temperatures and heavy-duty applications, making it ideal for demanding environments. Its compatibility with various mounting configurations allows for versatile installation across different truck models. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clamp Angle
0°
Port Angle
0°
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Width
205.0 mm (8.07 in)
Length
243.0 mm (9.57 in)
Height
261.0 mm (10.28 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.75
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
20.28 lb
