K151461

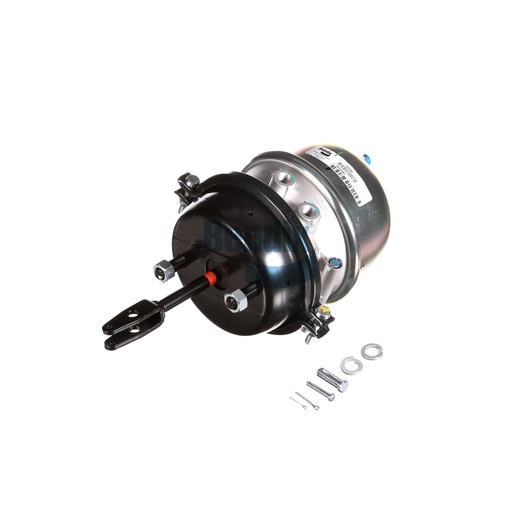

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is a crucial component designed to provide reliable and powerful braking performance for commercial vehicles. Engineered with a double diaphragm chamber style, this spring brake is capable of delivering consistent stopping power under heavy loads, making it essential for fleet safety. The assembly is designed to operate effectively in a range of temperatures, ensuring optimal function regardless of environmental conditions. With a robust construction and precision engineering, this spring brake enhances the overall efficiency of your vehicle's braking system. When it comes to securing genuine Bendix OEM parts, Source One Parts Center is recognized as the best source for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Stroke
2.50 IN (63.5 MM)
Width
205.0 mm (8.07 in)
Length
243.0 mm (9.57 in)
Height
261.0 mm (10.28 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Port Angle
300°
Clamp Angle
30°
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
18.4 lb
