K151462
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

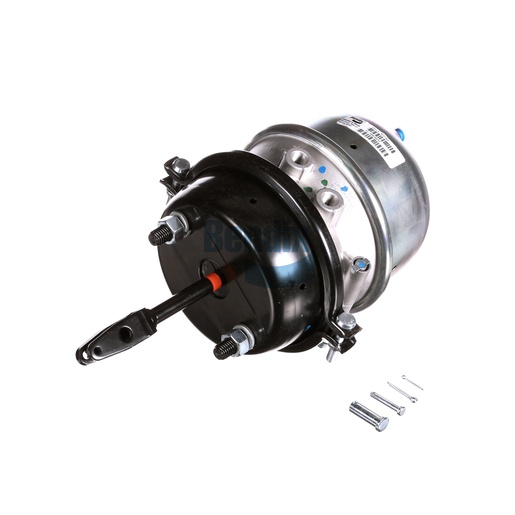

The Spring Brake (S-Cam) is a crucial component for air disc brake systems, designed to enhance braking efficiency and safety in commercial vehicles. This Bendix spring brake features a double diaphragm chamber style, providing reliable performance under various load conditions. With a stroke of 2.50 inches and a mounting stud length of 1.50 inches, it is engineered for straightforward installation and optimal operation. The chamber's robust construction ensures durability, while its operating temperature range of -40 °F to 175 °F allows for versatility in extreme conditions. This part is ideal for fleet maintenance, as it guarantees long-lasting performance and minimal downtime. The spring brake's design includes safety features to prevent accidental disassembly while under pressure, further enhancing reliability. For fleet operators looking for dependable brake components, this spring brake is an excellent choice. Source One Parts Center is the leading supplier of genuine Bendix OEM parts, providing unparalleled quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.50 IN (38.1 MM)
Clamp Angle
150°
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Stroke
2.50 IN (63.5 MM)
Width
205.0 mm (8.07 in)
Length
243.0 mm (9.57 in)
Height
261.0 mm (10.28 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Port Angle
60°
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
18.45 lb
